PA-400-M10-HB
- Riser for PA-400-M10 anti-vibration base
CHARACTERISTICS AND APPLICATION

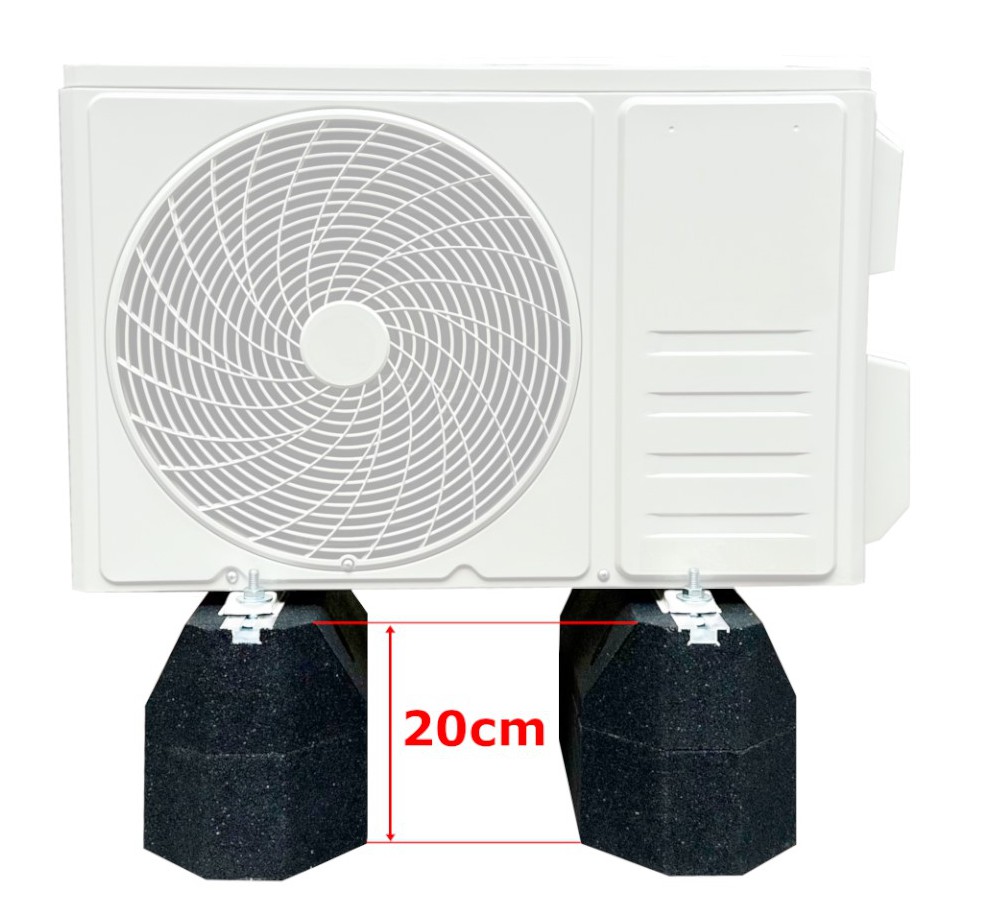

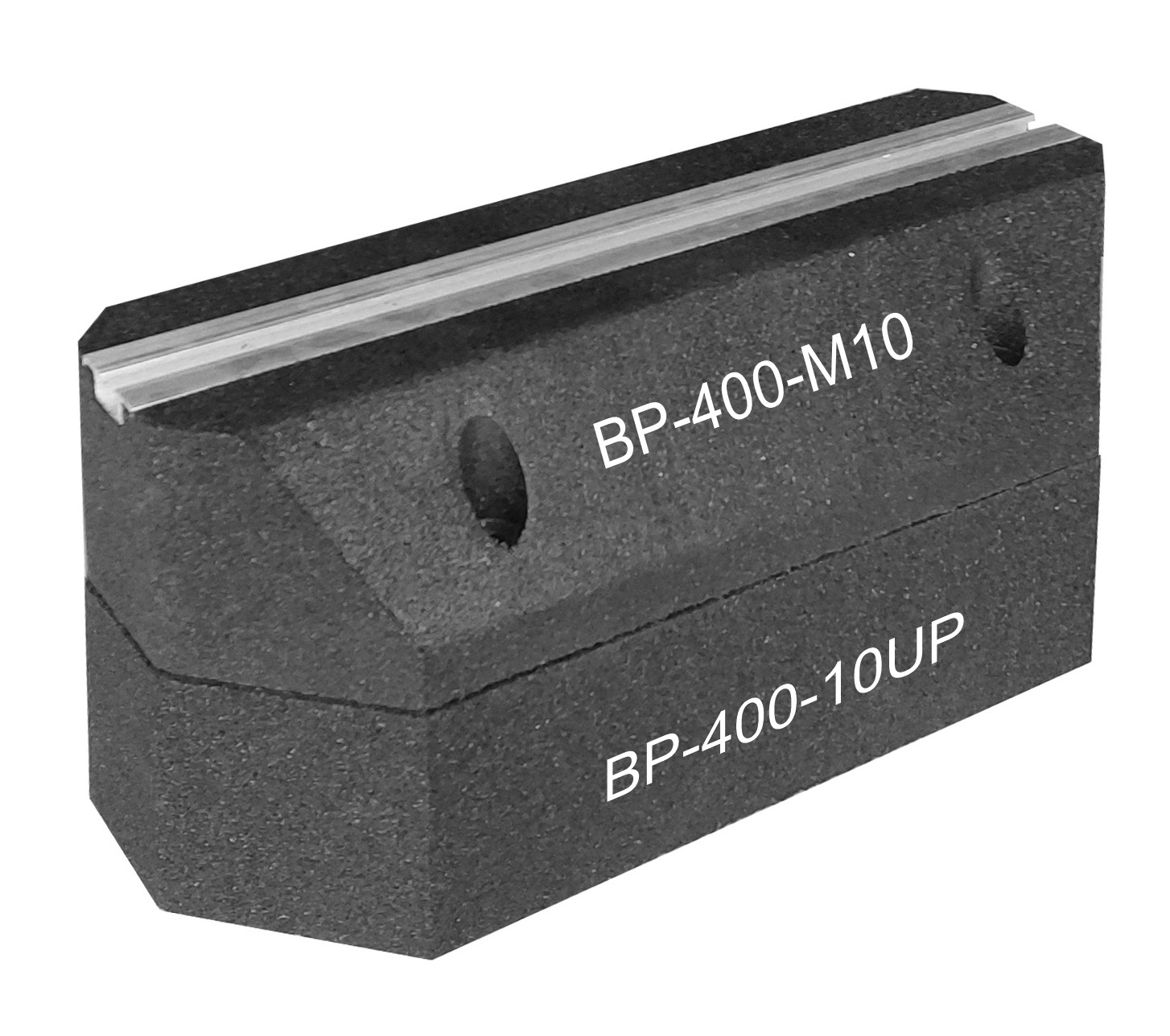

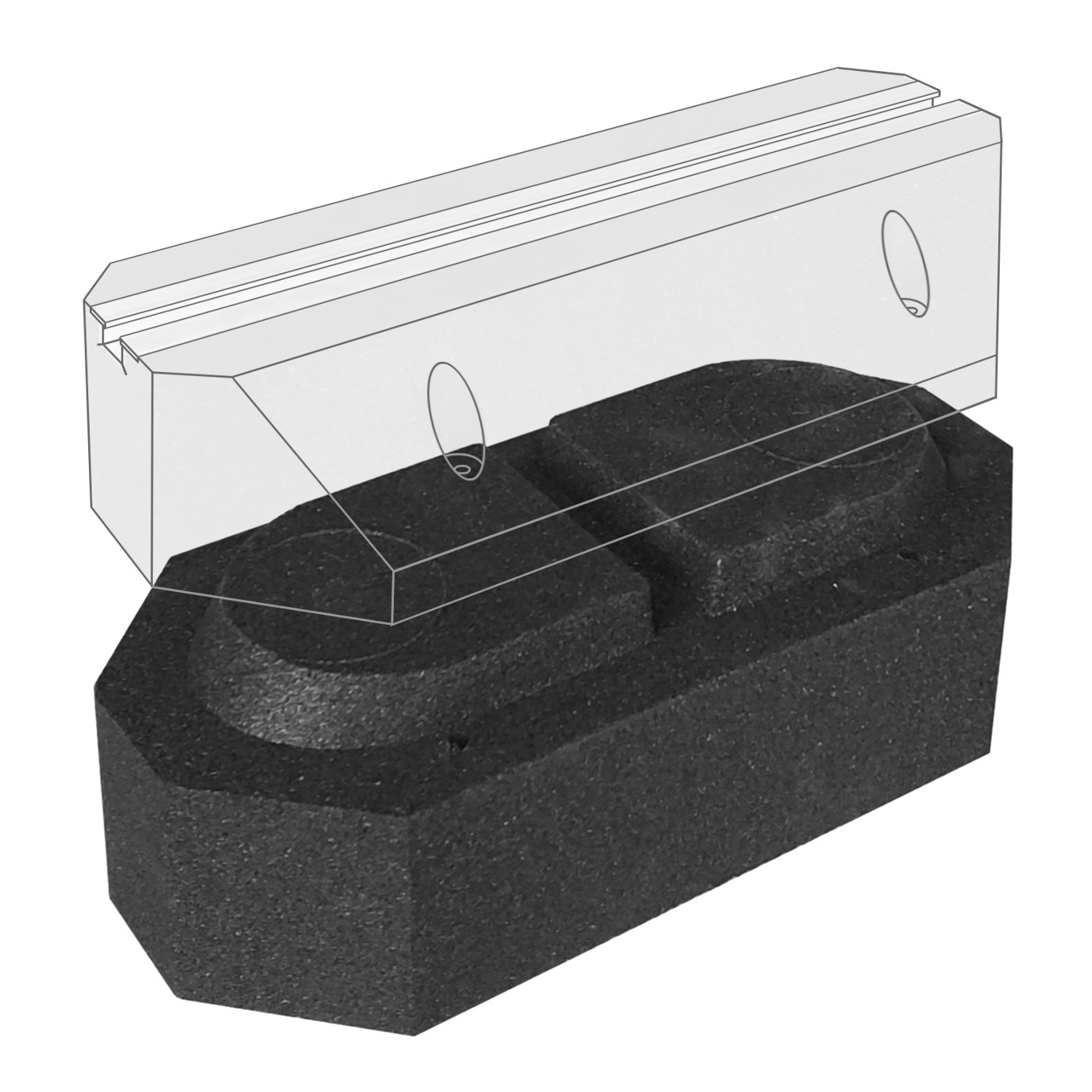

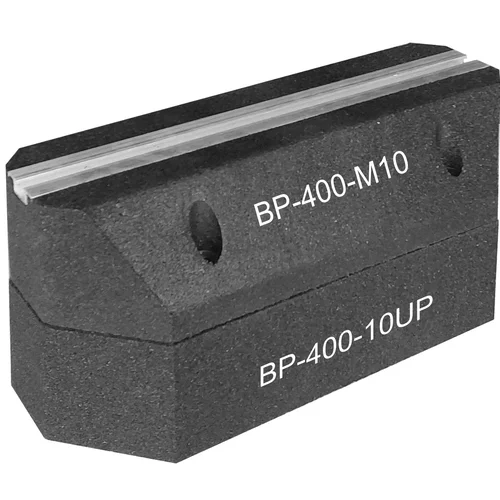

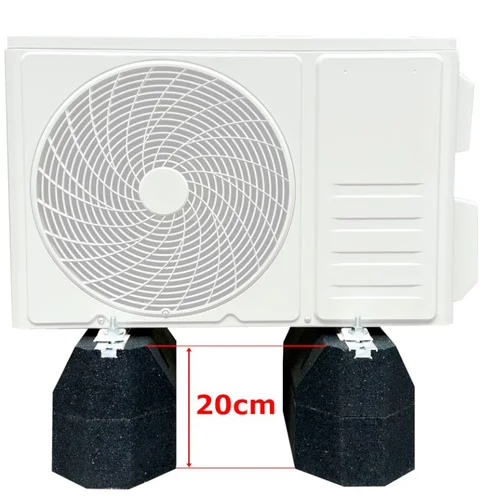

Element dedicated to the BP-400-M10 rubber support as a riser. The total height of the set after assembly is 20 cm, eliminating the need for additional foundations, blocks, etc. Stacking of the blocks is possible; for stability, the recommended maximum height is 40 cm.

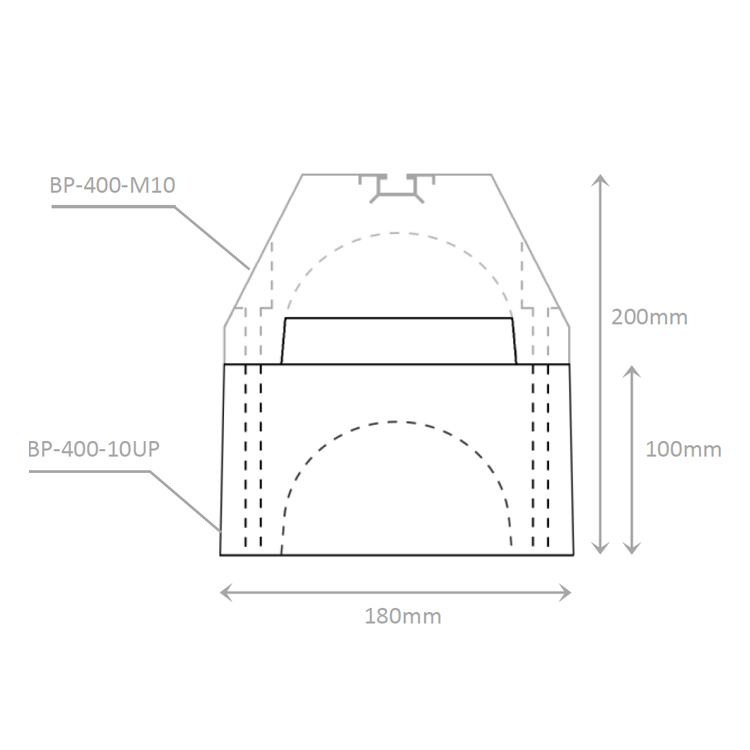

TECHNICAL SPECIFICATION
Length: 400 mm
Height: 100 mm
Width: 180 mm
Weight: 2x4,3 kg
Maximum load: 2x200 kg
Operating temperature: -30 … 80 °C
